Software that knows, in detail: what's in a field

A companion to part 5 of the series “Software that knows”.

An application usually keeps what it knows about a single input field in about ten places: a glossary, validation code, resource files for each language, constants for clinical thresholds, business logic, a synonym list, release notes. Each copy has to be updated by hand when something changes. This article puts all of it in one file, for one field, and shows what an ontology adds: one place for each fact, one format that every tool can read, and room for new kinds of knowledge without breaking what already uses the model.

Why one field

One field is enough to show what an ontology adds. The field is the axillary temperature (taken under the armpit) from the imci-fever application of part 5, built from the WHO digital adaptation kit (DAK) for child health.

In 18 small steps, the field grows from a bare concept to a translated question with a clinical rule. Each step adds one kind of knowledge that an application usually keeps somewhere else; the table at the end shows where. A last part shows that the model can be checked like any other data.

Not every step is used by imci-fever today. That is part of the point: the model can hold more than the application reads yet, and nothing that reads it breaks. Every step only adds statements; nothing earlier is removed or changed (a monotonic extension).

For each step: what it adds, and whether imci-fever uses it today (“ignored” means it does not read it yet). Prefixes are omitted. Lines marked # + are new.

Step 0: the concept in words

DAK entry CHE.B6.DE01: the child’s temperature taken under the armpit, in °C. For children from 2 months to 5 years:

Below 35.5: hypothermia.
35.5 to 37.4: normal.
37.5 to 38.4: fever.
38.5 and above: high fever.

Part A: the concept, with no form

Step 1: a name

imci:axillaryTemperature a rdf:Property ;                 # +
  rdfs:label "axillary temperature"@en .                  # +

An identifier that other models can point to. The label has a language tag from the start, so adding languages later (step 12) is a pure addition.

imci-fever: ignored.

Step 2: a definition

  skos:definition "The child's temperature taken under the armpit, in degrees Celsius."@en .   # +

imci-fever: ignored.

Step 3: the source

  prov:wasDerivedFrom dak:CHE.B6.DE01 .                   # +

On the concept, the source holds wherever the concept is used.

imci-fever: ignored here; it records sources on the form questions.

imci:bodyTemperature a rdf:Property ; rdfs:label "body temperature"@en .    # +

imci:axillaryTemperature
  rdfs:subPropertyOf imci:bodyTemperature ;               # +
  skos:exactMatch <https://loinc.org/8328-7/> .           # + LOINC: axillary temperature

The model’s rectal temperature field, which measures about 0.5 °C higher, also becomes a body temperature. A rule can use that (step 16). The code links the concept to a standard terminology.

imci-fever: ignored.

Step 5: values and unit

  rdfs:range xsd:decimal ;                                # +
  qudt:hasUnit unit:DEG_C .                               # +

imci-fever: ignored. The unit is only “(°C)” in the label text.

Part B: the question in a form

Step 6: the field exists

imci:AssessmentShape sh:property [
  sh:path imci:axillaryTemperature ;                      # +
  sh:group imci:FeverTab ; sh:order 2                     # +
] .

Second question on the Fever tab. The generator stops with “no type”: it does not guess.

imci-fever: used.

Step 7: the data type

  sh:datatype xsd:decimal ;                               # +

A number input.

imci-fever: used.

Step 8: plausibility limits

  sh:minInclusive 30 ; sh:maxInclusive 44 ;               # +

These catch typing errors, such as 375 for 37.5. They do not say what a fever is; that comes in step 14. A first change in behaviour: values accepted before are now errors, although the step only added statements.

imci-fever: used.

Step 9: one value

  sh:maxCount 1 ;                                         # +

Optional, so no sh:minCount: without a thermometer, “hot to touch” replaces the measurement.

imci-fever: ignored.

Step 10: the question’s label

  sh:name "Axillary temperature (°C)"@en ;                # +

Step 1 names the concept; this is the text of the question.

imci-fever: used.

Step 11: help text

  sh:description "Taken under the armpit."@en ;           # +

imci-fever: used.

Step 12: translations

  sh:name "Axillary temperature (°C)"@en , "Température axillaire (°C)"@fr ,        # +
          "Temperatura axilar (°C)"@es , "درجة الحرارة الإبطية (°م)"@ar ;          # +
  sh:description "Taken under the armpit."@en , "Prise sous l'aisselle."@fr ,        # +
                 "Tomada debajo de la axila."@es , "تُقاس تحت الإبط."@ar ;            # +

The translations sit next to the question, and a check can refuse a question without them. Arabic reads right to left; RDF 1.2 can state that in the data (@ar--rtl). The translations are illustrative, not reviewed.

imci-fever: not yet; it is in English.

Step 13: when to ask

  imci:shownWhen [ imci:not [ imci:field imci:thermometerNotAvailable ;     # +
                              imci:equals true ] ] ;                        # +

The question disappears without a thermometer, and an earlier answer no longer counts. Again, only statements were added, yet the form changed. Monotonic means that earlier statements stay true, not that the application stays the same.

The field also decides other questions: a value of 37.5 °C or more means fever, which reveals the fever questions and a whole tab (the next companion article shows the form).

imci-fever: the condition format is used; this condition is not (the temperature is always asked).

The question, complete:

imci:AssessmentShape sh:property [
  sh:path imci:axillaryTemperature ;
  sh:group imci:FeverTab ; sh:order 2 ;
  sh:datatype xsd:decimal ;
  sh:minInclusive 30 ; sh:maxInclusive 44 ;
  sh:maxCount 1 ;
  sh:name "Axillary temperature (°C)"@en , "Température axillaire (°C)"@fr ,
          "Temperatura axilar (°C)"@es , "درجة الحرارة الإبطية (°م)"@ar ;
  sh:description "Taken under the armpit."@en , "Prise sous l'aisselle."@fr ,
                 "Tomada debajo de la axila."@es , "تُقاس تحت الإبط."@ar ;
  imci:shownWhen [ imci:not [ imci:field imci:thermometerNotAvailable ; imci:equals true ] ] ;
  prov:wasDerivedFrom dak:CHE.B6.DE01
] .

Part C: what a measured value means

In imci-fever, the meaning sits inside conditions: “axillary temperature at least 37.5” is fever, and a second condition repeats it for the other temperature field with 38.0. The next steps turn this into data and one rule.

Step 14: the clinical ranges, as data

imci:TemperatureBand a rdfs:Class .                                             # +

imci:Hypothermia a imci:TemperatureBand ; imci:below 35.5 ;                     # +
  rdfs:label "Hypothermia"@en , "Hypothermie"@fr , "Hipotermia"@es , "انخفاض حرارة الجسم"@ar .
imci:Normal a imci:TemperatureBand ; imci:from 35.5 ; imci:below 37.5 ;         # +
  rdfs:label "Normal"@en , "Normale"@fr , "Normal"@es , "طبيعية"@ar .
imci:Fever a imci:TemperatureBand , imci:FeverBand ; imci:from 37.5 ; imci:below 38.5 ;   # +
  rdfs:label "Fever"@en , "Fièvre"@fr , "Fiebre"@es , "حمّى"@ar .
imci:HighFever a imci:TemperatureBand , imci:FeverBand ; imci:from 38.5 ;       # +
  rdfs:label "High fever"@en , "Forte fièvre"@fr , "Fiebre alta"@es , "حمّى شديدة"@ar .

“37.5 °C is a fever” is now a fact with a name in four languages (and a source, dak:CHE.B6.DE01, on each range), not a number inside a condition.

imci-fever: not yet.

Step 15: other measurement sites

imci:axillaryTemperature imci:offsetToAxillary 0.0 .                            # +
imci:rectalTemperature imci:offsetToAxillary -0.5 ;                             # +
  rdfs:subPropertyOf imci:bodyTemperature ; prov:wasDerivedFrom dak:CHE.B6.DE04 .

DAK entry CHE.B6.DE04 gives the ranges for the armpit and the difference for any other site.

imci-fever: not yet.

Step 16: one rule

imci:AssessmentShape sh:rule [ a sh:SPARQLRule ; sh:prefixes imci: ;            # +
  sh:construct """
    CONSTRUCT { $this imci:temperatureBand ?band }
    WHERE {
      $this ?site ?value .
      ?site rdfs:subPropertyOf imci:bodyTemperature ; imci:offsetToAxillary ?offset .
      BIND (?value + ?offset AS ?axillary)
      ?band a imci:TemperatureBand .
      OPTIONAL { ?band imci:from ?from }  OPTIONAL { ?band imci:below ?below }
      FILTER ((!BOUND(?from) || ?axillary >= ?from) && (!BOUND(?below) || ?axillary < ?below))
    }""" ] ,
  [ a sh:SPARQLRule ; sh:prefixes imci: ;                                        # +
    sh:construct """
      CONSTRUCT { $this imci:fever true }
      WHERE { $this imci:temperatureBand/a imci:FeverBand }""" ] .

Standard SPARQL, in the rule format from part 4. One rule covers every measurement site: a new site needs an offset, not a rule. The thresholds 37.5 and 38.0 now follow from the data, and the result has labels in four languages (“Temperature: high fever”). Open point: if two sites disagree, the rule gives two ranges. Which counts is a clinical decision.

imci-fever: not yet; it uses its own conditions.

Part D: words and versions

Step 17: words used in notes

imci:axillaryTemperature
  skos:altLabel "armpit"@en , "under the arm"@en , "sous l'aisselle"@fr ,       # +
                "en la axila"@es , "تحت الإبط"@ar ;                             # +
  skos:hiddenLabel "T ax"@en .                                                  # +

Part 6 read free-text notes with these words. A hidden label is an abbreviation to recognise but never to show.

imci-fever: used, in English.

Step 18: versions

imci:axillaryTemperature dct:modified "2026-10-03"^^xsd:date .                  # +
imci:Fever2027 a imci:TemperatureBand , imci:FeverBand ;                        # +
  prov:wasRevisionOf imci:Fever ; imci:from 37.8 .        # example values
imci:Fever owl:deprecated true ; dct:isReplacedBy imci:Fever2027 .              # +

When the source changes, the old range is marked as replaced, not deleted. Old assessments keep their meaning.

imci-fever: ignored.

The build-up at a glance

Step	Aspect	Main terms	Standard	imci-fever today
1–3	Concept, definition, source	`rdfs:label`, `skos:definition`, `prov:wasDerivedFrom`	RDFS, SKOS, PROV-O	Ignored
4	Related concepts	`rdfs:subPropertyOf`, `skos:exactMatch`	RDFS, SKOS	Ignored
5	Values and unit	`rdfs:range`, `qudt:hasUnit`	RDFS, QUDT	Ignored (unit in the label)
6–8	Field, type, plausibility	`sh:path`, `sh:datatype`, `sh:minInclusive`	SHACL	Used
9	One value	`sh:maxCount`	SHACL	Ignored
10–11	Label and help	`sh:name`, `sh:description`	SHACL	Used (English)
12	Translations	language tags	RDF	Not yet
13	When asked	`imci:shownWhen`	Own vocabulary	Used
14–15	Clinical ranges, measurement sites	data	Own vocabulary	Not yet
16	Rule	`sh:rule`, `sh:SPARQLRule`	SHACL-AF, SPARQL	Not yet
17	Words in notes	`skos:altLabel`, `skos:hiddenLabel`	SKOS	Used (English)
18	Versions	`prov:wasRevisionOf`, `owl:deprecated`	PROV-O, OWL	Ignored

Two kinds of limits. Plausibility limits (step 8) belong to the form. The clinical ranges (steps 14–16) belong to the knowledge.
Additions can change behaviour. Steps 8, 13 and 16 only add statements, yet the application changes after each.
Relations save rules. One rdfs:subPropertyOf and a table of offsets let one rule serve every measurement site.

One file, many kinds of knowledge

Where an application usually keeps what these steps wrote down:

Knowledge	Step	Usual place in an application
Concept and definition	1–2	A glossary or a wiki, if anywhere
Source	3	A ticket or a code comment
Link to a terminology	4	A mapping table in an integration layer
Unit	5	A variable name or a label
Question, type, limits	6–9	UI code, validation code, database schema
Labels and help	10–11	UI code or resource files
Translations	12	One resource file per language
When to ask	13	UI code
Clinical ranges	14–15	Constants in code, copied into reports
Rule	16	Business logic in code
Words in notes	17	A search index or a synonym list
Versions	18	Git history and release notes

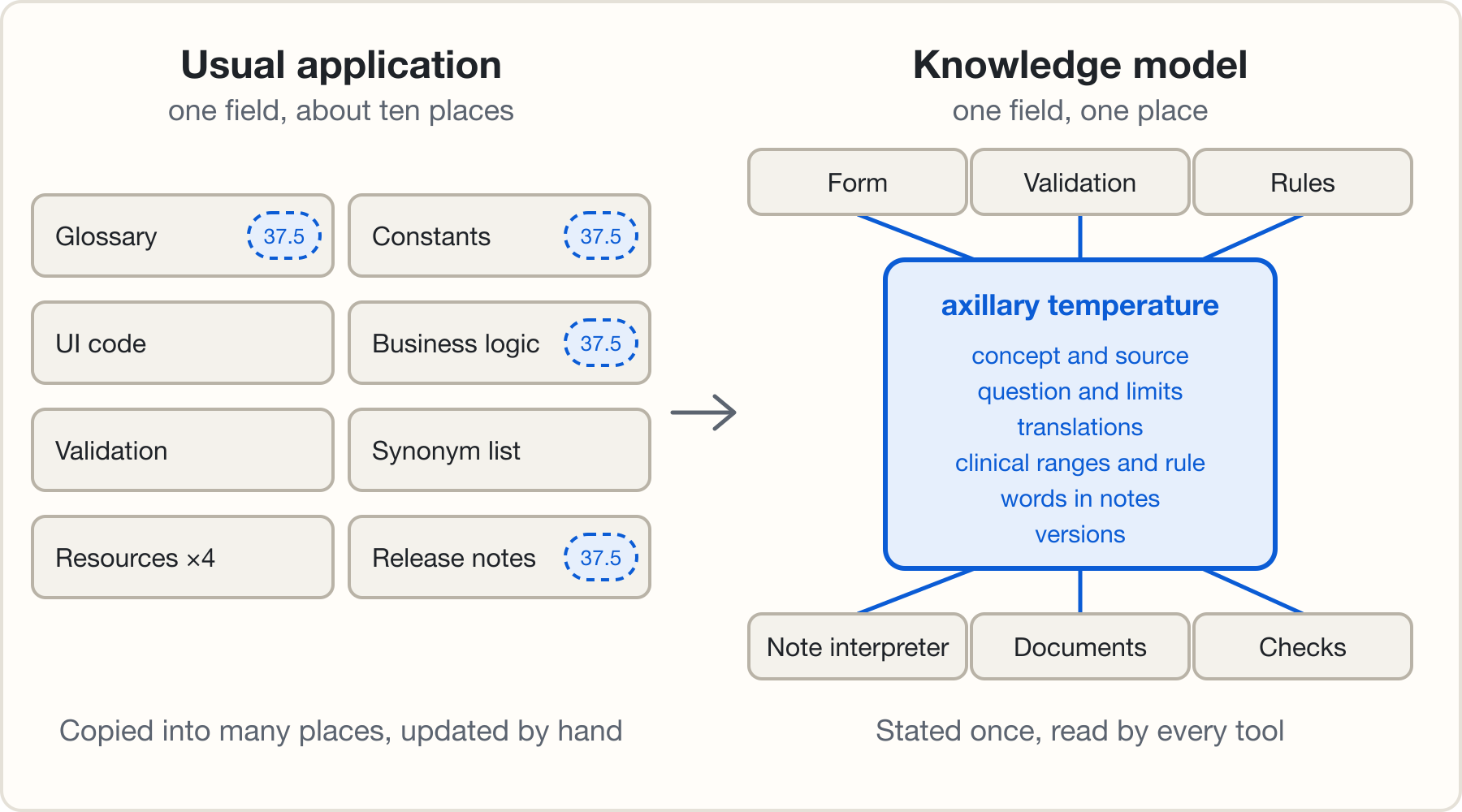

Twelve kinds of knowledge in about ten places, each updated by hand (part 4 followed one threshold through them). Three properties let an ontology hold them all:

One building block. Each item is a statement about a named thing: “this is a body temperature”, “the French label is…”, “fever starts at 37.5”. Any tool that reads statements (validator, rule engine, generator, agent) reads all of it.
One place for each fact. 37.5 is stated once. The form, the rule, the translations, the documents and the checks refer to it. Change it once, and everything derived follows.
Open to new kinds of knowledge. The unit, the languages and the history each needed only a new property: no new table, file format or migration. Anything that can be named can be described and linked. Standard vocabularies cover much of it: SKOS for terms, PROV-O for sources, QUDT for units, OWL-Time for time, GeoSPARQL for places (the malaria risk of an area), the W3C Organization Ontology for roles, Schema.org for everyday things. Models that share names merge by putting their statements together.

Potentially anything, but not everything belongs there. An ontology describes meaning and relations. Millions of transactions, heavy computation and screen layout stay in their own tools; the ontology describes what their data means, as part 4 showed for existing databases mapped with R2RML.

Checking the model

The model is data, so it can be checked like data, with the same standards, on every change and before anything is generated.

Structure. SHACL shapes can check the model itself. Every question has one label per language, a source, and a type or a list of choices (the “no type” error of step 6, found before the generator runs):

check:QuestionShape a sh:NodeShape ;
  sh:targetObjectsOf sh:property ;
  sh:property [ sh:path sh:name ; sh:languageIn ( "en" "fr" "es" "ar" ) ;
                sh:uniqueLang true ; sh:minCount 4 ] ;
  sh:property [ sh:path prov:wasDerivedFrom ; sh:minCount 1 ] ;
  sh:or ( [ sh:path sh:datatype ; sh:minCount 1 ] [ sh:path sh:in ; sh:minCount 1 ] ) .

Consistency. SPARQL queries find statements that contradict each other. This one reports clinical ranges that overlap:

check:BandShape a sh:NodeShape ;
  sh:targetClass imci:TemperatureBand ;
  sh:sparql [ sh:prefixes imci: ; sh:message "Overlaps with {?other}." ;
    sh:select """
      SELECT $this ?other WHERE {
        ?other a imci:TemperatureBand . FILTER (?other != $this)
        OPTIONAL { $this imci:from ?from1 }  OPTIONAL { $this imci:below ?below1 }
        OPTIONAL { ?other imci:from ?from2 } OPTIONAL { ?other imci:below ?below2 }
        FILTER ((!BOUND(?below1) || !BOUND(?from2) || ?from2 < ?below1) &&
                (!BOUND(?below2) || !BOUND(?from1) || ?from1 < ?below2))
      }""" ] .

The same way: no gaps between the ranges, every range inside the plausibility limits, every property used by a rule declared in the model (a typo otherwise makes a rule silently never apply), every cited DAK entry present in the DAK (imci-fever checks this one in code).

Behaviour. Examples are data too: a value and the result the source expects.

check:case1 imci:axillaryTemperature 37.4 ; check:expects imci:Normal .
check:case2 imci:axillaryTemperature 37.5 ; check:expects imci:Fever .

Code runs the rules on each example and compares. Values on the limits are where errors hide. imci-fever already has one test per path through its decision tables, and rules that must hold for any answers, checked on 3,000 random assessments.

Change. Whether a change only adds can be checked mechanically: a statement in the old version and missing in the new one breaks monotonicity and needs a person to look at it. W3C RDF Dataset Canonicalization (RDFC-1.0) makes two versions comparable as plain sets. Because additions can change behaviour, the old examples are run again: if a result changes, the change is either a fix or a mistake.

Limits. Checks find structural errors, contradictions and broken examples. Whether 37.5 °C is the right threshold stays with the experts, who read the model through generated documents (part 4). The checks make sure the model says what they approved.

How we’d know it’s wrong

Models built up in small steps grow beyond what anyone reviews.
Additions that change behaviour get through without the examples that would catch them.
The shapes that check the model grow as large as the model.
The knowledge moved into data in part C is harder for experts to read than the conditions it replaced.
Some knowledge proves awkward to state as statements and ends up in code or documents again.

The ideas and arguments in this article are my own. An AI assistant (Claude) helped with drafting, editing and fact-checking. The example is adapted from the WHO digital adaptation kit for child health (CC BY-NC-SA 3.0 IGO); WHO did not create the adaptation and is not responsible for it.

Software that knows, in detail: what's in a field

Why one field

Step 0: the concept in words

Part A: the concept, with no form

Step 1: a name

Step 2: a definition

Step 3: the source

Step 4: related concepts

Step 5: values and unit

Part B: the question in a form

Step 6: the field exists

Step 7: the data type

Step 8: plausibility limits

Step 9: one value

Step 10: the question’s label

Step 11: help text

Step 12: translations

Step 13: when to ask

Part C: what a measured value means

Step 14: the clinical ranges, as data

Step 15: other measurement sites

Step 16: one rule

Part D: words and versions

Step 17: words used in notes

Step 18: versions

The build-up at a glance

One file, many kinds of knowledge

Checking the model

How we’d know it’s wrong
